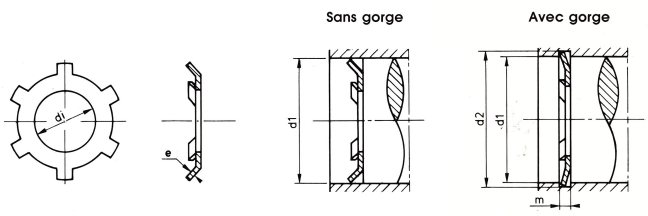

Série 7005
| Ref | d1 | d1 tol | e | d2 | d2 tol | m min | di | Nb de branche | Fh charge axiale admissible sans gorge (daN) | Poids en Kg par 1000 | Devis |
| C7005 A035 | 35.00 | +-0.05 | 0.50 | 35.25 | +0.07 | 0.85 | 26.80 | 12 | 50.00 | 1.100 |
|
| C7005 A025 | 25.00 | +-0.05 | 0.50 | 25.20 | +0.07 | 0.85 | 18.00 | 10 | 40.00 | 0.640 |
|
| C7005 A020 | 20.00 | +-0.05 | 0.40 | 20.17 | +0.07 | 0.85 | 13.00 | 8 | 40.00 | 0.340 |
|
| C7005 A018 | 18.00 | +-0.05 | 0.25 | 18.17 | +0.05 | 0.55 | 12.00 | 8 | 35.00 | 0.170 |
|
| C7005 A014 | 14.00 | +-0.05 | 0.25 | 14.15 | +0.05 | 0.55 | 8.50 | 6 | 30.00 | 0.120 |
|
| C7005 A010 | 10.00 | +-0.03 | 0.25 | 10.13 | +0.05 | 0.55 | 4.80 | 6 | 25.00 | 0.070 |
|
| C7005 A050 | 50.00 | +-0.05 | 0.50 | 50.27 | +0.07 | 0.85 | 40.00 | 15 | 50.00 | 1.750 |
|
| C7005 A030 | 30.00 | +-0.05 | 0.50 | 30.23 | +0.07 | 0.85 | 22.50 | 10 | 40.00 | 0.750 |
|
| C7005 A022 | 22.00 | +-0.05 | 0.50 | 22.20 | +0.07 | 0.85 | 15.40 | 8 | 40.00 | 0.500 |
|
| C7005 A019 | 19.00 | +-0.05 | 0.40 | 19.17 | +0.05 | 0.85 | 12.80 | 8 | 40.00 | - |
|
| C7005 A016 | 16.00 | +-0.05 | 0.25 | 16.15 | +0.05 | 0.55 | 10.20 | 6 | 30.00 | 0.160 |
|
| C7005 A012 | 12.00 | +-0.03 | 0.25 | 12.13 | +0.05 | 0.55 | 6.60 | 6 | 25.00 | 0.100 |
|
| C7005 A008 | 8.00 | +-0.03 | 0.25 | 8.10 | +0.05 | 0.55 | 3.00 | 5 | 25.00 | 0.050 |
|
