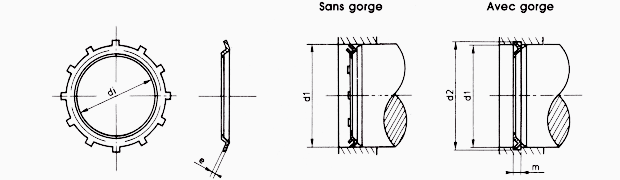

Série 7015
| Ref | d1 | d1 tol | e | d2 | d2 tol | m min | di | Nb de branche | Fh charge axiale admissible sans gorge (daN) | Poids en Kg par 1000 | Devis |
| C7015 A032 | 32.00 | +-0.05 | 0.50 | 32.30 | +0.07 | 0.80 | 22.50 | 10 | 80.00 | 1.210 |
|
| C7015 A025 | 25.00 | +-0.05 | 0.50 | 25.20 | +0.07 | 0.80 | 16.00 | 10 | 80.00 | 0.810 |
|
| C7015 A020 | 20.00 | +-0.05 | 0.40 | 20.20 | +0.07 | 0.80 | 11.00 | 8 | 80.00 | 0.510 |
|
| C7015 A018 | 18.00 | +-0.05 | 0.40 | 18.20 | +0.07 | 0.80 | 10.50 | 8 | 70.00 | 0.380 |
|
| C7015 A016 | 16.00 | +-0.05 | 0.30 | 16.20 | +0.05 | 0.50 | 9.40 | 6 | 60.00 | 0.210 |
|
| C7015 A012 | 12.00 | +-0.03 | 0.25 | 12.15 | +0.05 | 0.50 | 6.00 | 6 | 50.00 | 0.110 |
|
| C7015 A008 | 8.00 | +-0.03 | 0.25 | 8.10 | +0.05 | 0.50 | 4.00 | 5 | 45.00 | 0.040 |
|
| C7015 A050 | 50.00 | +-0.05 | 0.50 | 50.20 | +0.07 | 0.80 | 39.00 | 12 | 100.00 | 2.160 |
|
| C7015 A035 | 35.00 | +-0.05 | 0.50 | 35.20 | +0.07 | 0.80 | 25.00 | 10 | 100.00 | 1.320 |
|
| C7015 A030 | 30.00 | +-0.05 | 0.50 | 30.20 | +0.07 | 0.80 | 21.00 | 10 | 80.00 | 1.010 |
|
| C7015 A022 | 22.00 | +-0.05 | 0.50 | 22.20 | +0.07 | 0.80 | 13.00 | 10 | 80.00 | 0.600 |
|
| C7015 A019 | 19.00 | +-0.05 | 0.40 | 19.20 | +0.07 | 0.80 | 10.00 | 8 | 80.00 | 0.500 |
|
| C7015 A017 | 17.00 | +-0.05 | 0.30 | 17.20 | +0.05 | 0.50 | 9.60 | 8 | 60.00 | 0.280 |
|
| C7015 A015 | 15.00 | +-0.05 | 0.25 | 15.15 | +0.05 | 0.50 | 9.00 | 8 | 60.00 | 0.200 |
|
| C7015 A010 | 10.00 | +-0.03 | 0.25 | 10.10 | +0.05 | 0.50 | 5.00 | 6 | 50.00 | 0.070 |
|
| C7015 A040 | 40.00 | +-0.05 | 0.50 | 40.20 | +0.07 | 0.80 | 30.00 | 12 | 100.00 | 1.720 |
|
