Série SSA 200

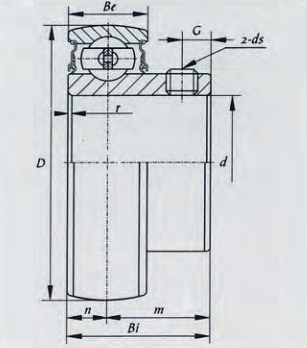

| Ref | d | D- | Be | H- | h | B1 | G | m- | Bi | n | K | ds | Capacité de charge dynamique C (daN) | Capacité de charge statique Co (daN) | Poids en Kg | Devis |
| SSA201 | 12.00 | 40.00 | 12.00 | 13.50 | 3.60 | 19.10 | 5.00 | 13.10 | 28.60 | 6.00 | 28.60 | M6X1 | 960.00 | 480.00 | 0.13 |
|
| SSA202 | 15.00 | 40.00 | 12.00 | 13.50 | 3.60 | 19.10 | 5.00 | 13.10 | 28.60 | 6.00 | 28.60 | M6X1 | 960.00 | 480.00 | 0.13 |
|
| SSA203 | 17.00 | 40.00 | 12.00 | 13.50 | 3.60 | 19.10 | 5.00 | 13.10 | 28.60 | 6.00 | 28.60 | M6X1 | 960.00 | 480.00 | 0.13 |
|
| SSA204 | 20.00 | 47.00 | 14.00 | 13.50 | 4.00 | 21.50 | 5.00 | 14.50 | 31.00 | 7.00 | 33.30 | M6X1 | 1000.00 | 630.00 | 0.15 |
|
| SSA206 | 30.00 | 62.00 | 16.00 | 15.90 | 5.00 | 23.80 | 6.00 | 15.80 | 35.70 | 8.00 | 44.50 | M8X1 | 1520.00 | 1020.00 | 0.30 |
|
| SSA207 | 35.00 | 72.00 | 17.00 | 17.50 | 5.70 | 25.40 | 6.50 | 16.90 | 38.90 | 8.50 | 55.60 | M8X1 | 2010.00 | 1390.00 | 0.50 |
|
| SSA208 | 40.00 | 80.00 | 18.00 | 18.30 | 6.20 | 30.20 | 6.50 | 21.20 | 43.70 | 9.00 | 60.30 | M8X1 | 2560.00 | 1810.00 | 0.67 |
|
| SSA209 | 45.00 | 85.00 | 19.00 | 18.30 | 6.80 | 30.20 | 6.50 | 19.20 | 43.60 | 9.50 | 63.50 | M8X1 | 3300.00 | 2100.00 | 0.73 |
|
| SSA210 | 50.00 | 90.00 | 20.00 | 18.30 | 6.50 | 30.20 | 6.50 | 19.20 | 43.60 | 10.00 | 69.90 | M8X1 | 3500.00 | 2300.00 | 0.83 |
|
| SSA211 | 55.00 | 100.00 | 24.00 | 20.70 | 7.20 | 32.40 | 8.00 | 20.40 | 48.40 | 12.00 | 76.20 | M10X1 | 4400.00 | 3000.00 | 0.87 |
|
| SSA212 | 60.00 | 110.00 | 24.00 | 22.30 | 8.00 | 33.40 | 8.00 | 21.40 | 53.10 | 12.00 | 84.20 | M10X1 | 4850.00 | 2960.00 | 1.30 |
|
