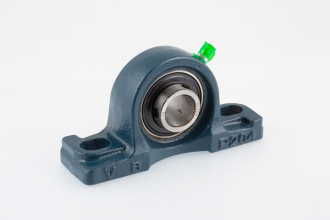

Série UCP200

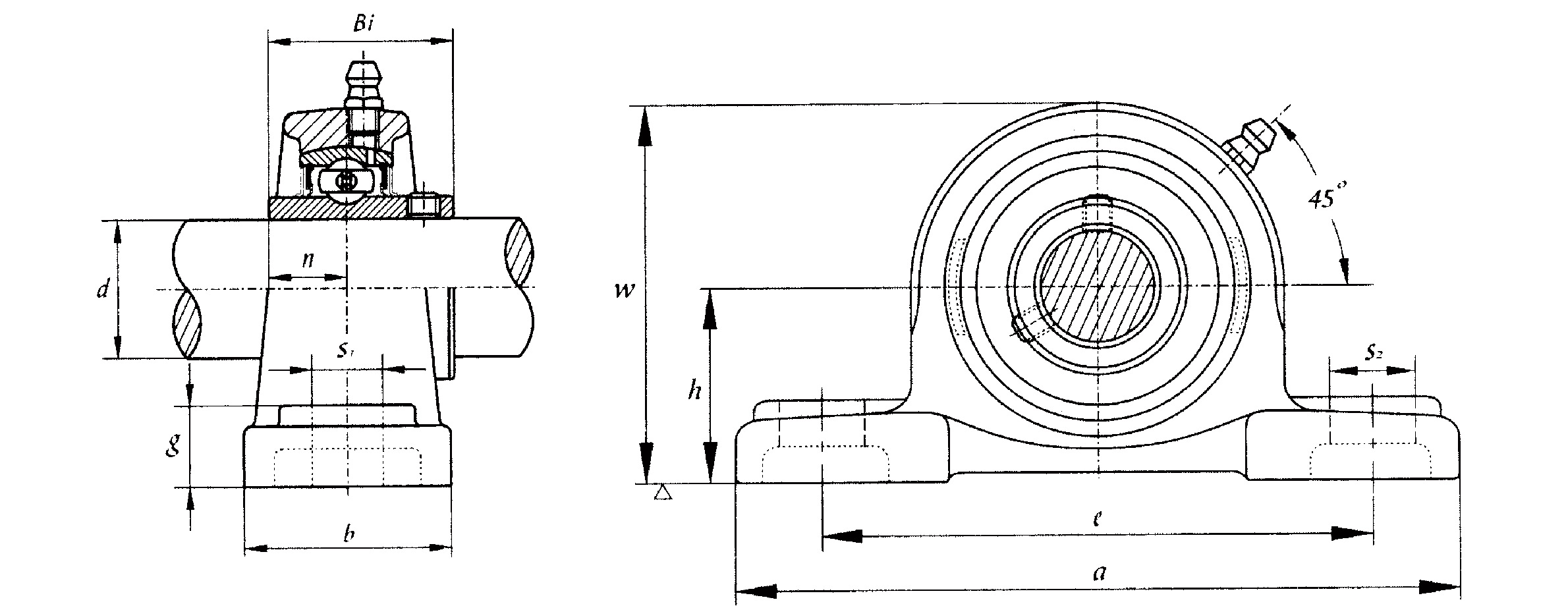

| Ref | d | h | a | e | b- | g- | s2 | S1 | w- | Bi | n | Boulon mm | Roulement | Corps de palier | Poids en Kg | Devis |
| UCP201 | 12.00 | 30.20 | 127.00 | 96.00 | 38.00 | 15.00 | 19.00 | 13.00 | 62.00 | 31.00 | 12.70 | M10 | UC 201 | P 203 | 0.63 |
|
| UCP202 | 15.00 | 30.20 | 127.00 | 96.00 | 38.00 | 15.00 | 19.00 | 13.00 | 62.00 | 31.00 | 12.70 | M10 | UC 202 | P 203 | 0.63 |
|
| UCP203 | 17.00 | 30.20 | 127.00 | 96.00 | 38.00 | 15.00 | 19.00 | 13.00 | 62.00 | 31.00 | 12.70 | M10 | UC 203 | P 203 | 0.63 |
|
| UCP204 | 20.00 | 33.30 | 127.00 | 96.00 | 38.00 | 15.00 | 19.00 | 13.00 | 65.00 | 31.00 | 12.70 | M10 | UC 204 | P 204 | 0.65 |
|
| UCP205 | 25.00 | 36.50 | 140.00 | 105.00 | 38.00 | 16.00 | 19.00 | 13.00 | 70.00 | 34.00 | 14.30 | M10 | UC205 | P 205 | 0.79 |
|
| UCP206 | 30.00 | 42.90 | 165.00 | 121.00 | 48.00 | 18.00 | 21.00 | 17.00 | 83.00 | 38.10 | 15.90 | M14 | UC206 | P 206 | 1.10 |
|
| UCP207 | 35.00 | 47.60 | 167.00 | 126.00 | 48.00 | 19.00 | 21.00 | 17.00 | 92.00 | 42.90 | 17.50 | M14 | UC 207 | P 207 | 1.60 |
|
| UCP208 | 40.00 | 49.20 | 184.00 | 136.00 | 54.00 | 19.00 | 21.00 | 17.00 | 98.00 | 49.20 | 19.00 | M14 | UC 208 | P 208 | 2.00 |
|
| UCP209 | 45.00 | 54.00 | 190.00 | 146.00 | 54.00 | 20.00 | 21.00 | 17.00 | 106.00 | 49.20 | 19.00 | M14 | UC 209 | P 209 | 2.20 |
|
| UCP210 | 50.00 | 57.20 | 206.00 | 159.00 | 60.00 | 22.00 | 25.00 | 20.00 | 112.00 | 51.60 | 19.00 | M16 | UC 210 | P 210 | 2.80 |
|
| UCP211 | 55.00 | 63.50 | 219.00 | 171.00 | 60.00 | 22.00 | 25.00 | 20.00 | 126.00 | 55.60 | 22.20 | M16 | UC 211 | P 211 | 3.40 |
|
| UCP212 | 60.00 | 69.80 | 241.00 | 184.00 | 70.00 | 25.00 | 25.00 | 20.00 | 137.00 | 65.10 | 25.40 | M16 | UC 212 | P 212 | 4.80 |
|
| UCP213 | 65.00 | 76.20 | 265.00 | 203.00 | 70.00 | 27.00 | 29.00 | 25.00 | 150.00 | 65.10 | 25.40 | M20 | UC 213 | P 213 | 5.70 |
|
| UCP214 | 70.00 | 79.40 | 266.00 | 210.00 | 72.00 | 27.00 | 31.00 | 25.00 | 156.00 | 74.60 | 30.20 | M20 | UC 214 | P 214 | 7.00 |
|
| UCP215 | 75.00 | 82.60 | 275.00 | 217.00 | 74.00 | 28.00 | 31.00 | 25.00 | 163.00 | 77.80 | 33.30 | M20 | UC 215 | P 215 | 7.60 |
|
| UCP216 | 80.00 | 88.90 | 292.00 | 232.00 | 78.00 | 30.00 | 31.00 | 25.00 | 175.00 | 82.60 | 33.30 | M20 | UC 216 | P 216 | 9.00 |
|
| UCP217 | 85.00 | 95.20 | 310.00 | 247.00 | 83.00 | 32.00 | 31.00 | 25.00 | 187.00 | 85.70 | 34.10 | M20 | UC 217 | P 217 | 11.50 |
|
| UCP218 | 90.00 | 101.60 | 327.00 | 262.00 | 88.00 | 34.00 | 33.00 | 27.00 | 200.00 | 96.00 | 39.70 | M22 | UC 218 | P 218 | 14.30 |
|
