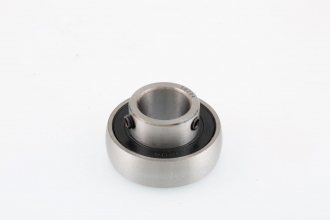

Série SB200

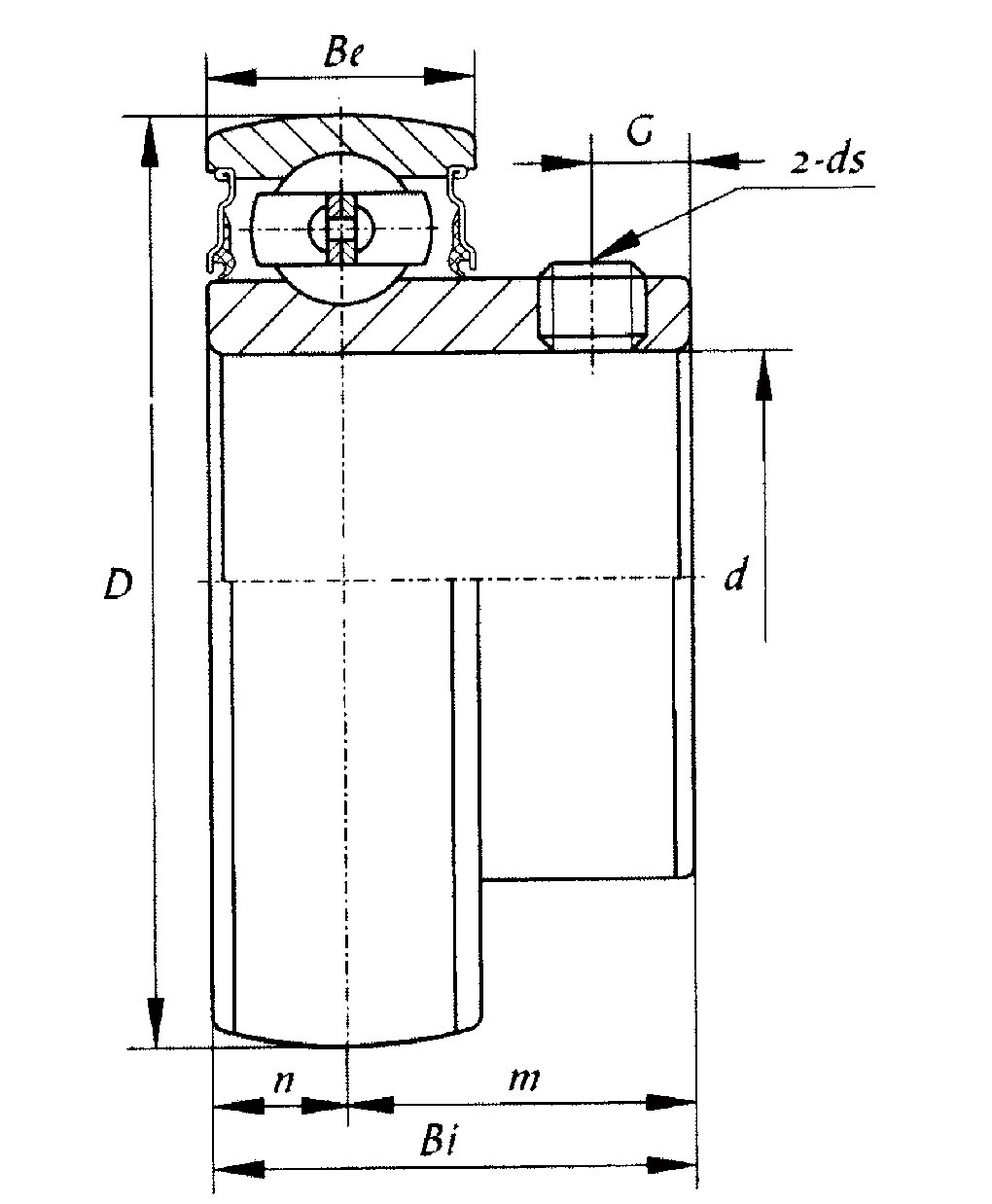

| Ref | d | D- | Be | h | G | m- | Bi | n | ds | Capacité de charge dynamique C (daN) | Capacité de charge statique Co (daN) | Poids en Kg | Devis |
| SB201 | 12.00 | 40.00 | 12.00 | 3.60 | 4.50 | 16.00 | 22.00 | 6.00 | M5X0,8 | 760.00 | 450.00 | 0.10 |
|
| SB202 | 15.00 | 40.00 | 12.00 | 3.60 | 4.50 | 16.00 | 22.00 | 6.00 | M5X0,8 | 760.00 | 450.00 | 0.10 |
|
| SB203 | 17.00 | 40.00 | 12.00 | 3.60 | 4.50 | 16.00 | 22.00 | 6.00 | M5X0,8 | 760.00 | 450.00 | 0.10 |
|
| SB204 | 20.00 | 47.00 | 14.00 | 3.90 | 4.50 | 18.00 | 25.00 | 7.00 | M6X1 | 1000.00 | 630.00 | 0.15 |
|
| SB205 | 25.00 | 52.00 | 15.00 | 3.90 | 5.50 | 19.50 | 27.00 | 7.50 | M6X1 | 1100.00 | 710.00 | 0.18 |
|
| SB206 | 30.00 | 62.00 | 16.00 | 5.00 | 5.50 | 22.00 | 30.00 | 8.00 | M6X1 | 1520.00 | 1020.00 | 0.27 |
|
| SB207 | 35.00 | 72.00 | 17.00 | 5.50 | 6.50 | 23.50 | 32.00 | 8.50 | M8X1 | 2010.00 | 1390.00 | 0.42 |
|
| SB208 | 40.00 | 80.00 | 18.00 | 6.00 | 7.00 | 25.00 | 34.00 | 9.00 | M8X1 | 2560.00 | 1810.00 | 0.60 |
|
| SB209 | 45.00 | 85.00 | 19.00 | 6.30 | 8.20 | 25.00 | 41.20 | 9.50 | M8X1 | 3260.00 | 2450.00 | 0.80 |
|
| SB210 | 50.00 | 90.00 | 20.00 | 6.50 | 9.20 | 31.60 | 41.60 | 10.00 | M8X1 | 3580.00 | 2300.00 | 0.83 |
|
| SB211 | 55.00 | 100.00 | 23.00 | 7.20 | 9.80 | 25.00 | 45.30 | 11.80 | M8X1 | 4400.00 | 2960.00 | 1.10 |
|
| SB212 | 60.00 | 110.00 | 24.00 | 8.00 | 9.80 | 25.00 | 53.70 | 14.90 | M10X1,25 | 4850.00 | 3300.00 | 1.30 |
|
